DaSalla's Air has the military specification hinge you need.
Heads up: We sell and customize. Can't find the right specs? In that case, we can also quickly and easily supply an even broader assortment of mil-spec products on a custom-order basis. Just give us a go.
Custom lengths on hinges have long been our specialty, while mil-spec hinges are no exception. Just let us know so we can quote and supply the parts exactly how you want and need them, saving you the time and energy of doing humongous machine work.
Note: Click ITEM NO. to view more details

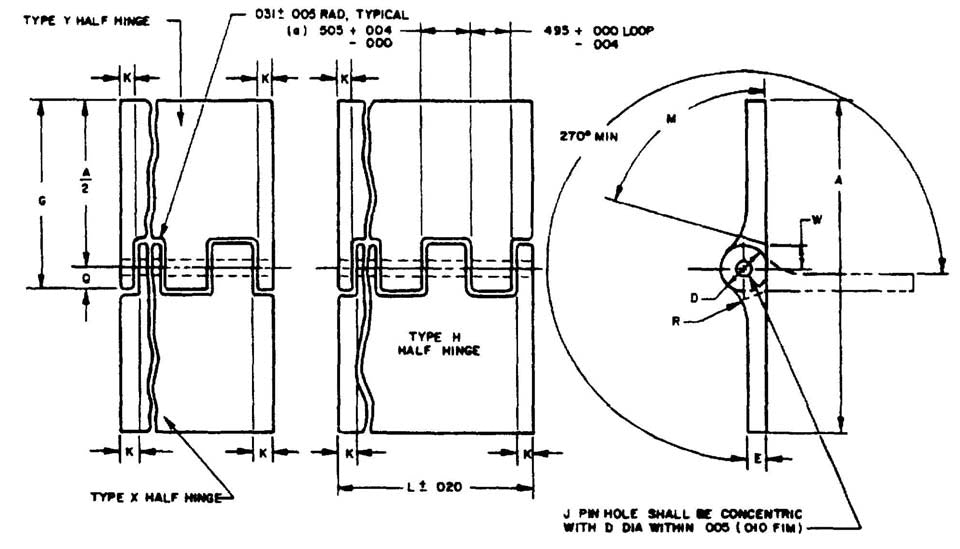

MS20001 Extruded Aluminum Continuous Hinges |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-2-7200 | 0.056 | 0.5 | 1.062 | 72 | 0.093 - 0.098 | Qty: 19 | ||||||
| MS20001-3-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-4-7200 | 0.056 | 0.5 | 1.5 | 72 | 0.093 - 0.098 | Qty: 123 | ||||||
| MS20001-5-7200 | 0.056 | 0.5 | 1.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-6-7200 | 0.056 | 0.5 | 2 | 72 | 0.093 - 0.098 | Qty: 152 | ||||||
| MS20001-8-7200 | 0.076 | 0.5 | 2 | 72 | 0.183 - 0.188 | Qty: 15 | ||||||
| MS20001-9-7200 | 0.056 | 0.5 | 2.5 | 72 | 0.093 - 0.098 | Qty: 62 | ||||||
| MS20001-10-7200 | 0.056 | 0.5 | 2.75 | 72 | 0.183 - 0.188 | Qty: 213 | ||||||
| MS20001-12-7200 | 0.115 | 0.5 | 3.375 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-14-7200 | 0.163 | 0.5 | 3.719 | 72 | 0.093 - 0.098 | Qty: 7 | ||||||
| MS20001-16-7200 | 0.21 | 0.5 | 3.938 | 72 | 0.093 - 0.098 | Qty: 45 | ||||||
MS20001C Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-C2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-C9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-C14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-C16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001CH Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CH2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CH9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CH14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CH16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001CX Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CX2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CX9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CX14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CX16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001CY Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CY2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY3-7200 | 0.056 | 0.5 | 1.969 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY4-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY5-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY6-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CY9-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY10-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY12-7200 | 0.115 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CY14-7200 | 0.163 | 0.5 | 1.688 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CY16-7200 | 0.21 | 0.5 | 1.86 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001H Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-H2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-H9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-H14-7200 | 0.063 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-H16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001P Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-P2-7200 | 0.056 | 0.5 | 1.062 | 72 | 0.093 - 0.098 | Qty: 5 | ||||||
| MS20001-P3-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 96 | ||||||
| MS20001-P4-7200 | 0.056 | 0.5 | 1.5 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-P5-7200 | 0.056 | 0.5 | 1.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-P6-7200 | 0.056 | 0.5 | 2 | 72 | 0.093 - 0.098 | Qty: 18 | ||||||
| MS20001-P8-7200 | 0.056 | 0.5 | 2 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-P9-7200 | 0.056 | 0.5 | 2.5 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-P10-7200 | 0.056 | 0.5 | 2.75 | 72 | 0.093 - 0.098 | Qty: 3 | ||||||
| MS20001-P12-7200 | 0.115 | 0.5 | 3.375 | 72 | 0.093 - 0.098 | Qty: 40 | ||||||
| MS20001-P14-7200 | 0.163 | 0.5 | 3.719 | 72 | 0.133 - 0.138 | Qty: 8 | ||||||
| MS20001-P16-7200 | 0.21 | 0.5 | 3.938 | 72 | 0.183 - 0.188 | Qty: 5 | ||||||
MS20001PH Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PH2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 38 | ||||||
| MS20001-PH5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-PH9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PH14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-PH16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 2 | ||||||
MS20001PX Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PX2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-PX9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PX14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-PX16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001PY Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PY2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY8-7200 | 0.07 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-PY9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PY14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-PY16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001X Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-X2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-X3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-X4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 9 | ||||||
| MS20001-X5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-X6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 15 | ||||||
| MS20001-X8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-X9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-X10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-X12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-X14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-X16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001Y Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-Y2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 9 | ||||||
| MS20001-Y5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-Y9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-Y14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-Y16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001A Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-A2-7200 | 0.056 | 0.5 | 1.06 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-A3-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 91 | ||||||
| MS20001-A4-7200 | 0.056 | 0.5 | 1.5 | 72 | 0.093 - 0.098 | Qty: 6 | ||||||
| MS20001-A5-7200 | 0.056 | 0.5 | 1.75 | 72 | 0.093 - 0.098 | Qty: 16 | ||||||
| MS20001-A6-7200 | 0.056 | 0.5 | 2 | 72 | 0.093 - 0.098 | Qty: 23 | ||||||
| MS20001-A8-7200 | 0.076 | 0.5 | 2 | 72 | 0.183 - 0.188 | Qty: 15 | ||||||
| MS20001-A9-7200 | 0.056 | 0.5 | 2.5 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-A10-7200 | 0.056 | 0.5 | 2.75 | 72 | 0.093 - 0.098 | Qty: 11 | ||||||
| MS20001-A12-7200 | 0.115 | 0.5 | 3.38 | 72 | 0.093 - 0.098 | Qty: 215 | ||||||
| MS20001-A14-7200 | 0.163 | 0.5 | 3.719 | 72 | 0.133 - 0.138 | Qty: 7 | ||||||
| MS20001-A16-7200 | 0.056 | 0.5 | 3.938 | 72 | 0.183 - 0.188 | Qty: 30 | ||||||
MS20001CA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 10 | ||||||
| MS20001-CA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001CHA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CHA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CHA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CHA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 10 | ||||||
| MS20001-CHA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CHA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001CXA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CXA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CXA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CXA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CXA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001CYA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-CYA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-CYA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-CYA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-CYA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001HA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-HA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 1 | ||||||
| MS20001-HA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-HA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA12-7200 | 0.1156 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-HA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-HA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001PA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PA2-7200 | 0.056 | 0.5 | 1.062 | 72 | 0.093 - 0.098 | Qty: 5 | ||||||
| MS20001-PA3-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 19 | ||||||
| MS20001-PA4-7200 | 0.056 | 0.5 | 1.5 | 72 | 0.093 - 0.098 | Qty: 10 | ||||||
| MS20001-PA5-7200 | 0.056 | 0.5 | 1.75 | 72 | 0.093 - 0.098 | Qty: 8 | ||||||
| MS20001-PA6-7200 | 0.056 | 0.5 | 2 | 72 | 0.093 - 0.098 | Qty: 6 | ||||||
| MS20001-PA8-7200 | 0.056 | 0.5 | 2 | 72 | 0.183 - 0.188 | Qty: 24 | ||||||
| MS20001-PA9-7200 | 0.056 | 0.5 | 2.5 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PA10-7200 | 0.056 | 0.5 | 2.75 | 72 | 0.093 - 0.098 | Qty: 48 | ||||||
| MS20001-PA12-7200 | 0.056 | 0.5 | 3.375 | 72 | 0.093 - 0.098 | Qty: 59 | ||||||
| MS20001-PA14-7200 | 0.056 | 0.5 | 3.719 | 72 | 0.133 - 0.138 | Qty: 18 | ||||||
| MS20001-PA16-7200 | 0.056 | 0.5 | 3.938 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001PHA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PHA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 10 | ||||||
| MS20001-PHA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 40 | ||||||
| MS20001-PHA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PHA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PHA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PHA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-PHA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PHA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PHA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PHA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-PHA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001PXA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PXA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-PXA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PXA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-PXA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001PYA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-PYA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-PYA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 100 | ||||||
| MS20001-PYA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-PYA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-PYA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001XA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-XA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-XA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-XA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-XA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20001YA Extruded Aluminum Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20001-YA2-7200 | 0.056 | 0.5 | 0.531 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA3-7200 | 0.056 | 0.5 | 0.625 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA4-7200 | 0.056 | 0.5 | 0.75 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA5-7200 | 0.056 | 0.5 | 0.875 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA6-7200 | 0.056 | 0.5 | 1 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA8-7200 | 0.076 | 0.5 | 1 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
| MS20001-YA9-7200 | 0.056 | 0.5 | 1.25 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA10-7200 | 0.056 | 0.5 | 1.375 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA12-7200 | 0.115 | 0.5 | 1.688 | 72 | 0.093 - 0.098 | Qty: 0 | ||||||
| MS20001-YA14-7200 | 0.163 | 0.5 | 1.86 | 72 | 0.133 - 0.138 | Qty: 0 | ||||||
| MS20001-YA16-7200 | 0.21 | 0.5 | 1.969 | 72 | 0.183 - 0.188 | Qty: 0 | ||||||
MS20257 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20257-1-7200 | 0.032 | 0.5 | 0.75 | 72 | 0.063 | Qty: 0 | ||||||
| MS20257-2-7200 | 0.04 | 0.49 | 1.062 | 72 | 0.09 | Qty: 0 | ||||||
| MS20257-3-7200 | 0.04 | 0.49 | 1.25 | 72 | 0.09 | Qty: 0 | ||||||
| MS20257-4-7200 | 0.04 | 0.49 | 1.5 | 72 | 0.09 | Qty: 0 | ||||||
| MS20257-5-7200 | 0.051 | 0.49 | 2 | 72 | 0.09 | Qty: 55 | ||||||
| MS20257-6-7200 | 0.064 | 1.99 | 2 | 72 | 0.18 | Qty: 0 | ||||||
MS20257C Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20257-C1-7200 | 0.031 | 0.49 | 0.75 | 48 | 0.063 | Qty: 0 | ||||||
| MS20257-C2-7200 | 0.037 | 0.49 | 1.062 | 48 | 0.09 | Qty: 0 | ||||||
| MS20257-C3-7200 | 0.05 | 0.49 | 1.25 | 48 | 0.118 | Qty: 0 | ||||||
| MS20257-C4-7200 | 0.062 | 0.49 | 1.5 | 48 | 0.118 | Qty: 0 | ||||||
| MS20257-C5-7200 | 0.062 | 0.49 | 2 | 72 | 0.18 | Qty: 0 | ||||||
| MS20257-C6-7200 | 0.062 | 1.99 | 2 | 72 | 0.18 | Qty: 0 | ||||||
MS20257P Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS20257-P1-7200 | 0.032 | 0.5 | 0.75 | 72 | 0.063 | Qty: 0 | ||||||
| MS20257-P2-7200 | 0.04 | 0.5 | 1.062 | 72 | 0.09 | Qty: 0 | ||||||
| MS20257-P3-7200 | 0.04 | 0.5 | 1.25 | 72 | 0.09 | Qty: 0 | ||||||
| MS20257-P4-7200 | 0.04 | 0.5 | 1.5 | 72 | 0.09 | Qty: 2 | ||||||
| MS20257-P5-7200 | 0.051 | 0.5 | 1.75 | 72 | 0.09 | Qty: 0 | ||||||
| MS20257-P6-7200 | 0.064 | 2 | 2 | 72 | 0.18 | Qty: 0 | ||||||
MS35821 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35821-6-7200 | 0.032 | 0.49 | 0.75 | 72 | 0.062 | Qty: 0 | ||||||
| MS35821-7-7200 | 0.032 | 0.49 | 1 | 72 | 0.062 | Qty: 0 | ||||||
| MS35821-8-7200 | 0.032 | 0.49 | 1.062 | 72 | 0.062 | Qty: 0 | ||||||
| MS35821-9-7200 | 0.032 | 0.49 | 1.25 | 72 | 0.062 | Qty: 0 | ||||||
| MS35821-10-7200 | 0.032 | 0.49 | 1.5 | 72 | 0.062 | Qty: 0 | ||||||
MS35822 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35822-9-7200 | 0.04 | 0.49 | 1.062 | 72 | 0.091 | Qty: 0 | ||||||
| MS35822-10-7200 | 0.04 | 0.49 | 1.25 | 72 | 0.091 | Qty: 0 | ||||||
| MS35822-11-7200 | 0.04 | 0.49 | 1.5 | 72 | 0.091 | Qty: 0 | ||||||
| MS35822-12-7200 | 0.04 | 0.49 | 2 | 72 | 0.091 | Qty: 0 | ||||||
| MS35822-13-7250 | 0.04 | 0.623 | 1.032 | 72.5 | 0.091 | Qty: 0 | ||||||
| MS35822-14-7250 | 0.04 | 0.623 | 1.25 | 72.5 | 0.091 | Qty: 0 | ||||||
| MS35822-15-7250 | 0.04 | 0.623 | 1.5 | 72.5 | 0.091 | Qty: 0 | ||||||
| MS35822-16-7250 | 0.04 | 0.623 | 2 | 72.5 | 0.091 | Qty: 0 | ||||||
MS35823 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35823-5-7250 | 0.05 | 0.623 | 1.062 | 72.5 | 0.125 | Qty: 0 | ||||||
| MS35823-6-7250 | 0.05 | 0.623 | 1.5 | 72.5 | 0.125 | Qty: 0 | ||||||
| MS35823-7-7250 | 0.05 | 0.623 | 2 | 72.5 | 0.125 | Qty: 0 | ||||||
| MS35823-8-7250 | 0.05 | 0.623 | 2.5 | 72.5 | 0.125 | Qty: 0 | ||||||
MS35824 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35824-1-12000 | 0.05 | 0.998 | 1.062 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-2-12000 | 0.05 | 0.998 | 1.5 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-3-12000 | 0.05 | 0.998 | 2 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-4-12000 | 0.05 | 0.998 | 2.5 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-5-12000 | 0.05 | 1.998 | 1.062 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-6-12000 | 0.05 | 1.998 | 1.5 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-7-12000 | 0.05 | 1.998 | 2 | 120 | 0.187 | Qty: 0 | ||||||
| MS35824-8-12000 | 0.05 | 1.998 | 2.5 | 120 | 0.187 | Qty: 0 | ||||||
MS35825 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35825-9-8500 | 0.06 | 0.623 | 1.062 | 85 | 0.125 | Qty: 0 | ||||||
| MS35825-10-8500 | 0.06 | 0.623 | 1.5 | 85 | 0.125 | Qty: 0 | ||||||
| MS35825-11-8500 | 0.06 | 0.623 | 2 | 85 | 0.125 | Qty: 0 | ||||||
| MS35825-12-8500 | 0.06 | 0.623 | 2.5 | 85 | 0.125 | Qty: 0 | ||||||
| MS35825-13-8400 | 0.06 | 0.998 | 1.062 | 84 | 0.125 | Qty: 0 | ||||||
| MS35825-14-8400 | 0.06 | 0.998 | 1.5 | 84 | 0.125 | Qty: 0 | ||||||
| MS35825-15-8400 | 0.06 | 0.998 | 2 | 84 | 0.125 | Qty: 0 | ||||||
| MS35825-16-8400 | 0.06 | 0.998 | 2.5 | 84 | 0.125 | Qty: 0 | ||||||
MS35826 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35826-9-8400 | 0.06 | 0.998 | 1.062 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-10-8400 | 0.06 | 0.998 | 1.5 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-11-8400 | 0.06 | 0.998 | 2 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-12-8400 | 0.06 | 0.998 | 2.5 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-13-8400 | 0.06 | 1.998 | 1.062 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-14-8400 | 0.06 | 1.998 | 1.5 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-15-8400 | 0.06 | 1.998 | 2 | 84 | 0.187 | Qty: 0 | ||||||
| MS35826-16-8400 | 0.06 | 1.998 | 2.5 | 84 | 0.187 | Qty: 0 | ||||||
MS35827 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35827-1-12000 | 0.06 | 0.998 | 1.5 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-2-12000 | 0.06 | 0.998 | 2 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-3-12000 | 0.06 | 0.998 | 2.5 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-4-12000 | 0.06 | 0.998 | 3 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-5-12000 | 0.06 | 1.998 | 3 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-6-12000 | 0.06 | 1.998 | 3.5 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-7-12000 | 0.06 | 1.998 | 4 | 120 | 0.25 | Qty: 0 | ||||||
| MS35827-8-12000 | 0.06 | 1.998 | 5 | 120 | 0.25 | Qty: 0 | ||||||
MS35828 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35828-1-12000 | 0.06 | 1.998 | 3 | 120 | 0.312 | Qty: 0 | ||||||
| MS35828-2-12000 | 0.06 | 1.998 | 3.5 | 120 | 0.312 | Qty: 0 | ||||||
| MS35828-3-12000 | 0.06 | 1.998 | 4 | 120 | 0.312 | Qty: 0 | ||||||
| MS35828-4-12000 | 0.06 | 1.998 | 5 | 120 | 0.312 | Qty: 0 | ||||||
| MS35828-5-12000 | 0.06 | 1.998 | 6 | 120 | 0.312 | Qty: 0 | ||||||
| MS35828-6-12000 | 0.06 | 1.998 | 3 | 120 | 0.312 | Qty: 0 | ||||||
| MS35828-7-12000 | 0.06 | 1.998 | 3.5 | 120 | 0.375 | Qty: 0 | ||||||
| MS35828-8-12000 | 0.06 | 1.998 | 4 | 120 | 0.375 | Qty: 0 | ||||||
| MS35828-9-12000 | 0.06 | 1.998 | 5 | 120 | 0.375 | Qty: 0 | ||||||
| MS35828-10-12000 | 0.06 | 1.998 | 6 | 120 | 0.375 | Qty: 0 | ||||||
MS35829 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35829-11-8400 | 0.075 | 1.998 | 2 | 84 | 0.187 | Qty: 0 | ||||||
| MS35829-12-8400 | 0.075 | 1.998 | 2.5 | 84 | 0.187 | Qty: 0 | ||||||
| MS35829-13-8400 | 0.075 | 1.998 | 3 | 84 | 0.187 | Qty: 0 | ||||||
| MS35829-14-8400 | 0.075 | 1.998 | 3.5 | 84 | 0.187 | Qty: 0 | ||||||
| MS35829-15-8400 | 0.075 | 1.998 | 4 | 84 | 0.187 | Qty: 0 | ||||||
| MS35829-16-8400 | 0.075 | 1.998 | 2 | 84 | 0.25 | Qty: 0 | ||||||
| MS35829-17-8400 | 0.075 | 1.998 | 2.5 | 84 | 0.25 | Qty: 0 | ||||||
| MS35829-18-8400 | 0.075 | 1.998 | 3 | 84 | 0.25 | Qty: 0 | ||||||
| MS35829-19-8400 | 0.075 | 1.998 | 3.5 | 84 | 0.25 | Qty: 0 | ||||||
| MS35829-20-8400 | 0.075 | 1.998 | 4 | 84 | 0.25 | Qty: 0 | ||||||
MS35830 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35830-11-8400 | 0.09 | 1.998 | 3 | 84 | 0.25 | Qty: 0 | ||||||
| MS35830-12-8400 | 0.09 | 1.998 | 3.5 | 84 | 0.25 | Qty: 0 | ||||||
| MS35830-13-8400 | 0.09 | 1.998 | 4 | 84 | 0.25 | Qty: 0 | ||||||
| MS35830-14-8400 | 0.09 | 1.998 | 5 | 84 | 0.25 | Qty: 0 | ||||||
| MS35830-15-8400 | 0.09 | 1.998 | 4 | 84 | 0.375 | Qty: 0 | ||||||
| MS35830-16-8400 | 0.09 | 1.998 | 5 | 84 | 0.375 | Qty: 0 | ||||||
| MS35830-17-8400 | 0.09 | 1.998 | 6 | 84 | 0.375 | Qty: 0 | ||||||
MS35831 Continuous (Piano) Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| MS35831-6-8400 | 0.125 | 1.998 | 4 | 84 | 0.375 | Qty: 0 | ||||||
| MS35831-7-8400 | 0.125 | 1.998 | 5 | 84 | 0.375 | Qty: 0 | ||||||
| MS35831-8-8400 | 0.125 | 1.998 | 6 | 84 | 0.375 | Qty: 0 | ||||||
AA55589 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55589-6-7200 | 0.032 | 0.49 | 0.75 | 72 | 0.062 | Qty: 0 | ||||||
| AA55589-7-7200 | 0.032 | 0.49 | 1 | 72 | 0.062 | Qty: 0 | ||||||
| AA55589-8-7200 | 0.032 | 0.49 | 1.062 | 72 | 0.062 | Qty: 0 | ||||||
| AA55589-9-7200 | 0.032 | 0.49 | 1.25 | 72 | 0.062 | Qty: 0 | ||||||
| AA55589-10-7200 | 0.032 | 0.49 | 1.5 | 72 | 0.062 | Qty: 0 | ||||||
AA55590 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55590-9-7200 | 0.04 | 0.49 | 1.062 | 72 | 0.091 | Qty: 0 | ||||||
| AA55590-10-7200 | 0.04 | 0.49 | 1.25 | 72 | 0.091 | Qty: 0 | ||||||
| AA55590-11-7200 | 0.04 | 0.49 | 1.5 | 72 | 0.091 | Qty: 0 | ||||||
| AA55590-12-7200 | 0.04 | 0.49 | 2 | 72 | 0.091 | Qty: 0 | ||||||
| AA55590-13-7250 | 0.04 | 0.623 | 1.032 | 72.5 | 0.091 | Qty: 0 | ||||||
| AA55590-14-7250 | 0.04 | 0.623 | 1.25 | 72.5 | 0.091 | Qty: 0 | ||||||
| AA55590-15-7250 | 0.04 | 0.623 | 1.5 | 72.5 | 0.091 | Qty: 0 | ||||||
| AA55590-16-7250 | 0.04 | 0.623 | 2 | 72.5 | 0.091 | Qty: 0 | ||||||
AA55592 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55592-9-8500 | 0.06 | 0.623 | 1.062 | 85 | 0.125 | Qty: 0 | ||||||
| AA55592-10-8500 | 0.06 | 0.623 | 1.5 | 85 | 0.125 | Qty: 0 | ||||||
| AA55592-11-8500 | 0.06 | 0.623 | 2 | 85 | 0.125 | Qty: 0 | ||||||
| AA55592-12-8500 | 0.06 | 0.623 | 2.5 | 85 | 0.125 | Qty: 0 | ||||||
| AA55592-13-8400 | 0.06 | 0.998 | 1.062 | 84 | 0.125 | Qty: 0 | ||||||
| AA55592-14-8400 | 0.06 | 0.998 | 1.5 | 84 | 0.125 | Qty: 0 | ||||||
| AA55592-15-8400 | 0.06 | 0.998 | 2 | 84 | 0.125 | Qty: 0 | ||||||
| AA55592-16-8400 | 0.06 | 0.998 | 2.5 | 84 | 0.125 | Qty: 0 | ||||||
AA55593 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55593-9-8400 | 0.06 | 0.998 | 1.062 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-10-8400 | 0.06 | 0.998 | 1.5 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-11-8400 | 0.06 | 0.998 | 2 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-12-8400 | 0.06 | 0.998 | 2.5 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-13-8400 | 0.06 | 1.998 | 1.062 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-14-8400 | 0.06 | 1.998 | 1.5 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-15-8400 | 0.06 | 1.998 | 2 | 84 | 0.187 | Qty: 0 | ||||||
| AA55593-16-8400 | 0.06 | 1.998 | 2.5 | 84 | 0.187 | Qty: 0 | ||||||
AA55594 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55594-11-8400 | 0.075 | 1.998 | 2 | 84 | 0.187 | Qty: 0 | ||||||
| AA55594-12-8400 | 0.075 | 1.998 | 2.5 | 84 | 0.187 | Qty: 0 | ||||||
| AA55594-13-8400 | 0.075 | 1.998 | 3 | 84 | 0.187 | Qty: 0 | ||||||
| AA55594-14-8400 | 0.075 | 1.998 | 3.5 | 84 | 0.187 | Qty: 0 | ||||||
| AA55594-15-8400 | 0.075 | 1.998 | 4 | 84 | 0.187 | Qty: 0 | ||||||
| AA55594-16-8400 | 0.075 | 1.998 | 2 | 84 | 0.25 | Qty: 0 | ||||||
| AA55594-17-8400 | 0.075 | 1.998 | 2.5 | 84 | 0.25 | Qty: 0 | ||||||
| AA55594-18-8400 | 0.075 | 1.998 | 3 | 84 | 0.25 | Qty: 0 | ||||||
| AA55594-19-8400 | 0.075 | 1.998 | 3.5 | 84 | 0.25 | Qty: 0 | ||||||
| AA55594-20-8400 | 0.075 | 1.998 | 4 | 84 | 0.25 | Qty: 0 | ||||||
AA55595 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55595-11-8400 | 0.09 | 1.998 | 3 | 84 | 0.25 | Qty: 0 | ||||||
| AA55595-12-8400 | 0.09 | 1.998 | 3.5 | 84 | 0.25 | Qty: 0 | ||||||
| AA55595-13-8400 | 0.09 | 1.998 | 4 | 84 | 0.25 | Qty: 0 | ||||||
| AA55595-14-8400 | 0.09 | 1.998 | 5 | 84 | 0.25 | Qty: 0 | ||||||
| AA55595-15-8400 | 0.09 | 1.998 | 4 | 84 | 0.375 | Qty: 0 | ||||||
| AA55595-16-8400 | 0.09 | 1.998 | 5 | 84 | 0.375 | Qty: 0 | ||||||
| AA55595-17-8400 | 0.09 | 1.998 | 6 | 84 | 0.375 | Qty: 0 | ||||||
AA55596 Continuous Hinges |
||||||||||||
| ITEM NO. | THICKNESS | KNUCKLE | WIDTH (OPEN) | LENGTH | PIN HOLE | QTY | AVAILABILITY | REQUEST QUOTE | ||||
| AA55596-6-8400 | 0.125 | 1.998 | 4 | 84 | 0.375 | Qty: 0 | ||||||
| AA55596-7-8400 | 0.125 | 1.998 | 5 | 84 | 0.375 | Qty: 0 | ||||||
| AA55596-8-8400 | 0.125 | 1.998 | 6 | 84 | 0.375 | Qty: 0 | ||||||
Note: Click Category to view items.
